T-Rex™ Diamond Series

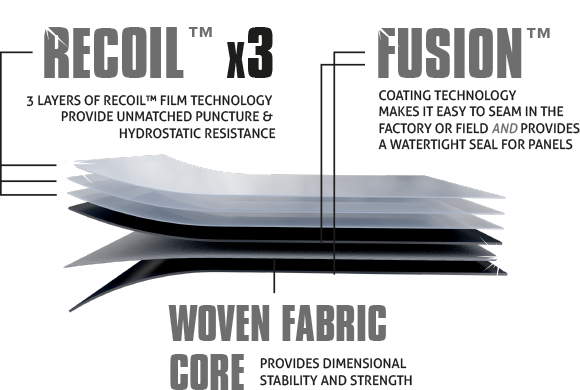

T-Rex Diamond Recoil FilmT-Rex™ Diamond is an engineered multilayered geomembrane used for water retention applications. T-Rex™ Diamond has a uniquely designed Recoil™ Film technology to offer an exceptionally high hydrostatic resistance to hold millions of gallons of water. In addition, T-Rex™ Diamond product has an innovative Fusion™ coating technology to offer a watertight seal panels. The core woven fabric offers high tensile and tear strength combined with outstanding dimensional stability. T-Rex™ Diamond is stabilized with special UV stabilizers and antioxidants designed to be use for an extended long time exposure water retention applications. T-Rex™ Diamond has an excellent flexibility, outstanding durability, stress cracking resistance along with lightweight construction provides an excellent performance in all climates and environmental conditions.

Features & Benefits

  • Recoil™ Film technology to offer an exceptionally high hydrostatic resistance
  • Fusion™ coating technology to offer a watertight seal panels
  • Thickness - 850 microns (0.85 mm) geomembrane
  • Excellent tensile and tear strength
  • High Puncture, impact and abrasion resistance
  • Ease of welding at low temperatures
  • Special UV and Antioxidant package for long term exposure
  • Outstanding Chemical resistance
  • ISI Approved: IS 15351 : 2015 - CM/L - 7800012309
  • Meets NSF/ANSI 61 – Safe for potable drinking water
  • Non-toxic, no PVC or other hazardous materials used in the construction of the geomembrane

Applications

NSF-IS Logos

  • Pond Liners
  • Oil Field Pit Liners
  • Containment Liners
  • Golf Course and Decorative Pond Liners
  • Remediation Liners
  • Secondary Containment Applications
T-Rex Diamond photos

Technical Data

Property Test/Method Typical Value
Film Structure - Recoil™ Technology
Fusion Coating - Proprietary Polymer Blend
Weight (GSM) ASTM D5261 650
Nominal Thickness (Microns) ASTM D1777 850
Hydrostatic Resistance (PSI) ASTM D751 410
Breaking Strength (lbs) ASTM D751 Machine Direction 500 | Cross Direction 490
Tear Resistance (lbs) ASTM D751 Machine Direction 106 | Cross Direction 101
Puncture Resistance (lbs) ASTM D751 192
Bursting strength (Ball burst) (PSI) ASTM D751 815
Low Temperature Flexibility ASTM D2136 -50 °C
Accelerated UV Weathering ASTM G154 > 90% @ 2000 Hours†

All values are ± 10%. †QUV A-340 lamps 8 hrs UV @ 60° C, 4 hrs condensation @ 40°. The test data is based on an average taken over several production runs and should not be considered or interpreted as minimum or maximum values. Values are typical data and not limiting specifications.
