T-Rex™ Silver Series

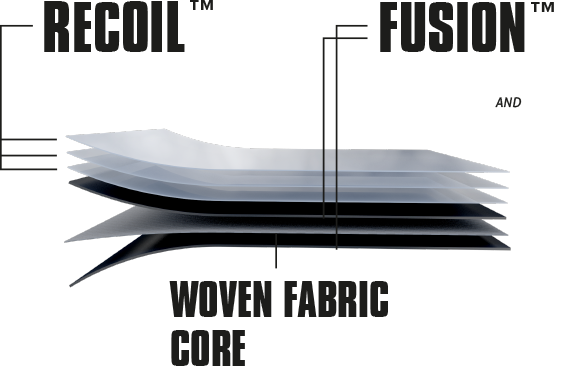

T-Rex Silver Recoil FilmT-Rex™ Silver is an engineered multilayered geomembrane used for water retention applications. T-Rex™ Silver has a uniquely designed Recoil™ Film technology to offer an exceptionally high hydrostatic resistance to hold millions of gallons of water. In addition, T-Rex™ Silver product has an innovative Fusion™ coating technology to offer a watertight seal panels. The core woven fabric offers high tensile and tear strength combined with outstanding dimensional stability. T-Rex™ Silver is stabilized with special UV stabilizers and antioxidants designed to be use for an extended long time exposure water retention applications. T-Rex™ Silver has an excellent flexibility, outstanding durability, stress cracking resistance along with lightweight construction provides an excellent performance in all climates and environmental conditions.

Features & Benefits

  • Recoil™ Film technology to offer an exceptionally high hydrostatic resistance
  • Fusion™ coating technology to offer a watertight seal panels
  • Thickness - 300 microns (0.3 mm) geomembrane
  • Excellent tensile and tear strength
  • High Puncture, impact and abrasion resistance
  • Ease of welding at low temperatures
  • Special UV and Antioxidant package for long term exposure
  • Outstanding Chemical resistance
  • ISI Approved: IS 15351 : 2015 - CM/L - 7800012309
  • Meets NSF/ANSI 61 – Safe for potable drinking water
  • Non-toxic, no PVC or other hazardous materials used in the construction of the geomembrane

Applications

NSF-IS Logos

  • Pond Liners
  • Oil Field Pit Liners
  • Containment Liners
  • Golf Course and Decorative Pond Liners
  • Remediation Liners
  • Secondary Containment Applications

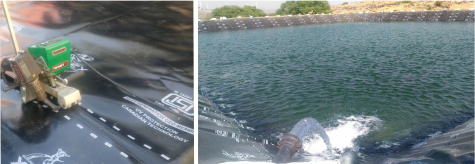

T-Rex Silver photos

Technical Data

Property Test/Method Typical Value
Film Structure - Recoil™ Technology
Fusion Coating - Proprietary Polymer Blend
Weight (GSM) ASTM D5261 260
Nominal Thickness (Microns) ASTM D1777 300
Hydrostatic Resistance (PSI) ASTM D751 225
Breaking Strength (lbs) ASTM D751 Machine Direction 280 | Cross Direction 220
Tear Resistance (lbs) ASTM D751 Machine Direction 55 | Cross Direction 45
Puncture Resistance (lbs) ASTM D751 90
Bursting Strength (Ball burst) (PSI) ASTM D751) 260
Low Temperature Flexibility ASTM D2136 -50 °C
Accelerated UV Weathering ASTM G154 > 90% @ 2000 Hours†

All values are ± 10%. †QUV A-340 lamps 8 hrs UV @ 60° C, 4 hrs condensation @ 40°. The test data is based on an average taken over several production runs and should not be considered or interpreted as minimum or maximum values. Values are typical data and not limiting specifications.
